Name: Eikon 4-Channel Headphone Amplifier [EHPAMP4]
Brand: Eikon
SKU: EHPAMP4
Price: 199 AUD
Availability: InStock

Overview
Reviews

Product Description

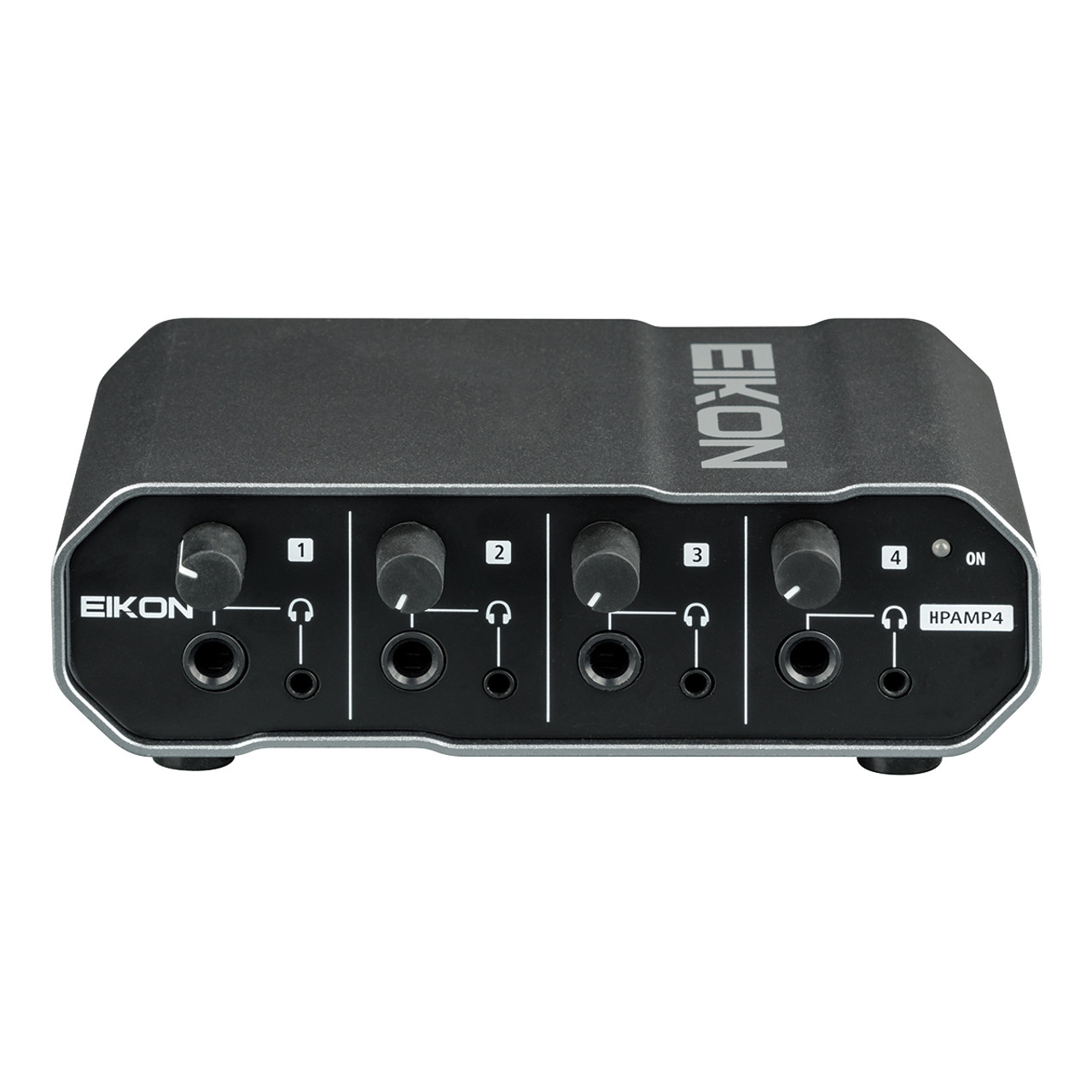

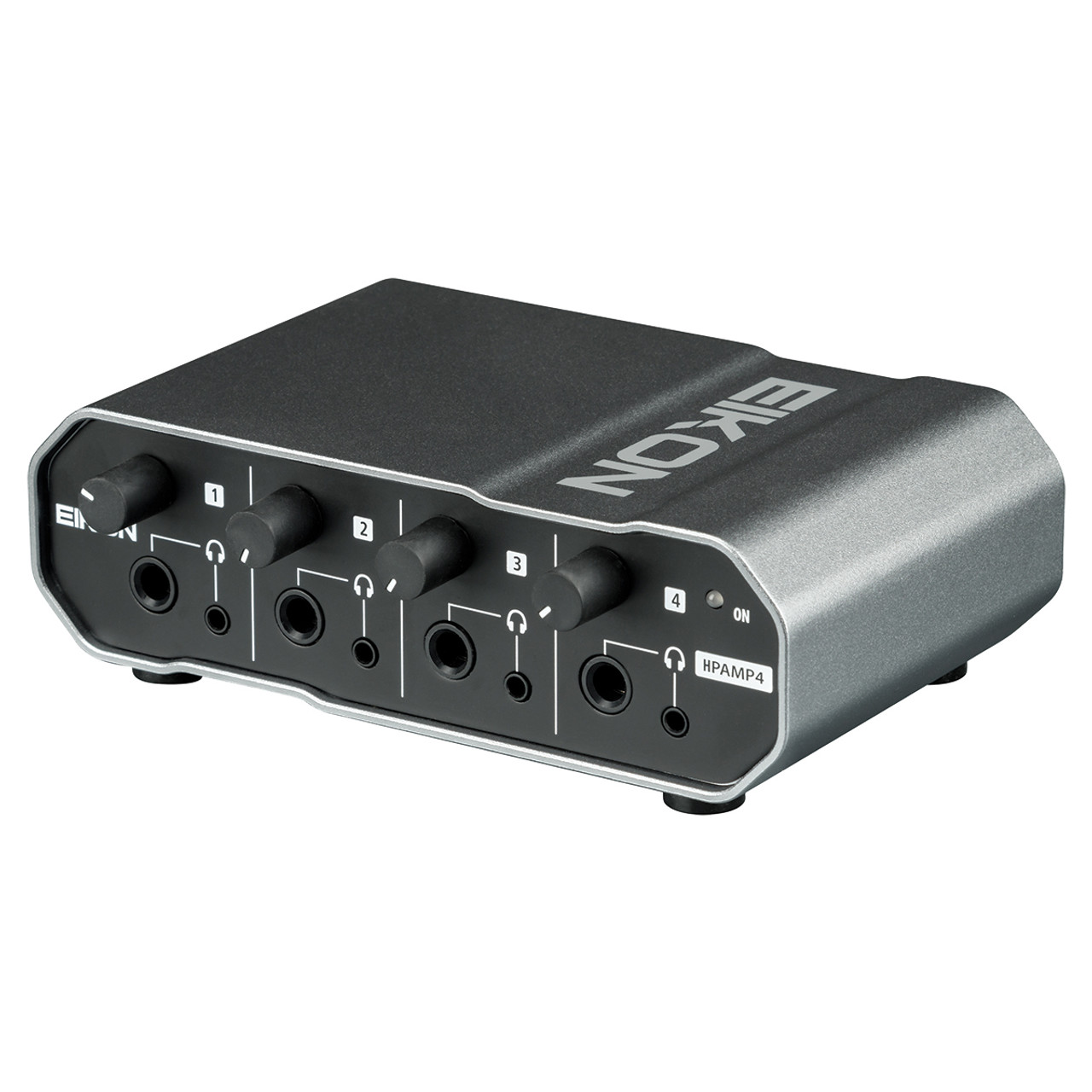

Eikon 4-Channel Headphone Amplifier

The compact HPAMP4 Headphones Amplifier features a stereo input and four headphone outputs with individual level controls. It is very useful in small studios or stages when up to four people want to listen together.

This 4-channel stereo headphone amplifier is designed for use with all types of headphones and therefore offers maximum flexibility. Its high-power stereo amplifiers with the low-noise 4580 OPAMP guarantee the highest sonic quality even at maximum volume. The input connections with 1/4Û jack, mini-jack, RCA and mono/stereo switch together with output connections 1/4Û jack and mini-jack allow the maximum flexibility without the need of special connection adapters.

INPUT SECTION
Connectors	2x RCA, 1x 1/4" JACK stereo, 1x 1/8" JACK stereo
Inputs	1x stereo
Input Impedance	20 Kohm
Max Input Level	+20 dBu
OUTPUT SECTION
Connectors	4x 1/4" JACK stereo or 1/8" JACK stereo
Outputs	4x HEADPHONES stereo
Max output 32ohm	2x 100mW (each channel)
Max output 600ohm	2x 100mW (each channel)
Load Impedance	min 16 ohm per channel
Max Gain	+20 dB (each channel)
SYSTEM PERFORMANCE
Distortion (THD)	0.02%
Noise	< -98 dBu unweighted
Frequency Response	< 20 Hz - 20 KHz (-3dB)
POWER SUPPLY
Connector	USB Type B
AC/DC Adapter Input	100-240V ~ (å±10%) 50/60Hz
AC/DC Adapter Output	5V-1A (5W)
Supplied Cable	1.2m USB Type A - Type B
GENERAL
Controls	4x OUTPUT LEVEL, INPUT STEREO/MONO SWITCH
Indicators	Power ON
Dimensions (WxHxD)	160 x 52 x 106mm
Weight	0.5kg (main w/out cable)
