Product Description

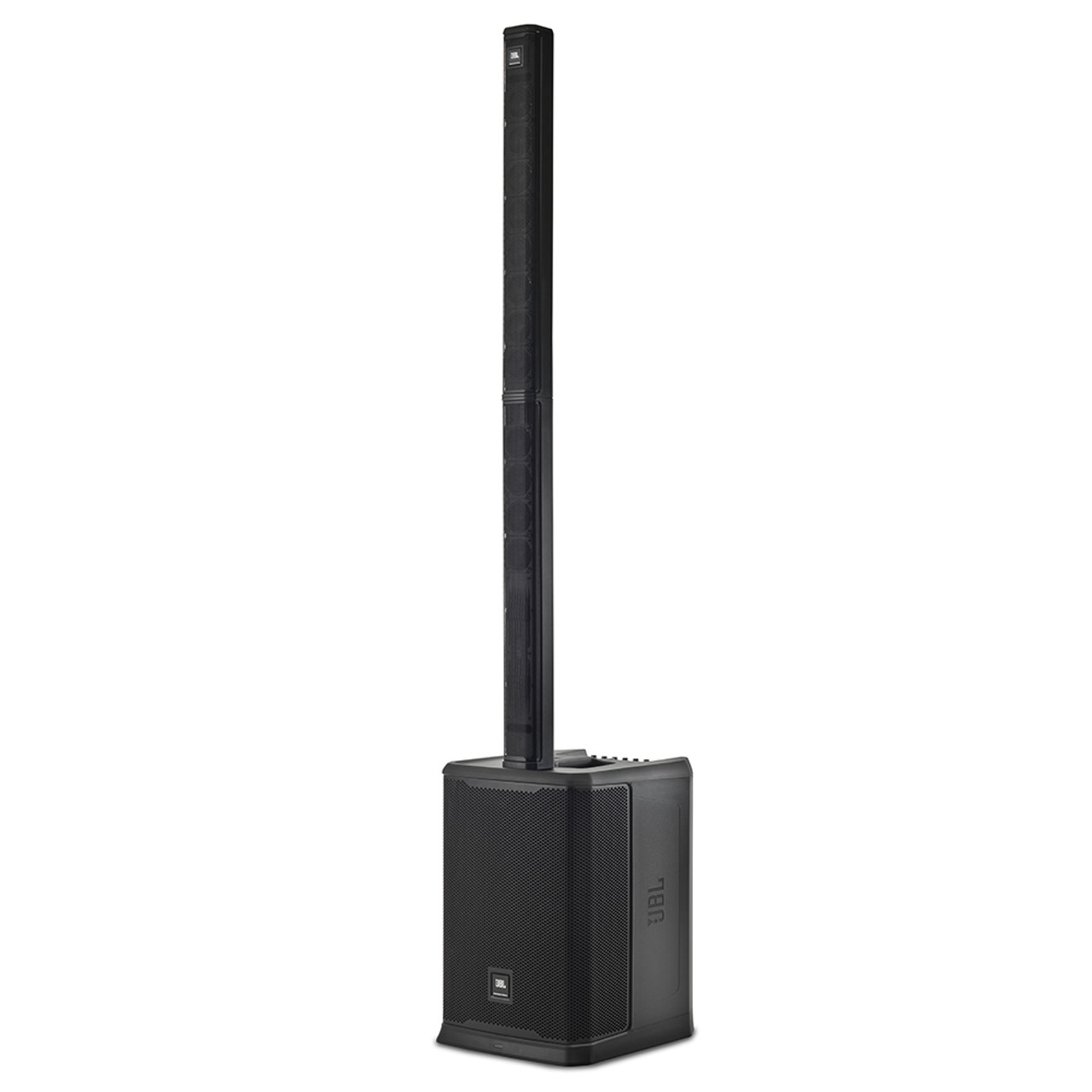

JBL PRX ONE All-In-One Powered Column PA 7 Channel Digital Mixer
Introducing the JBL PRX ONE All-In-One Powered Column PA 7 Channel Digital Mixer.
The PRX ONE features an acoustically optimized column array with a 7-channel mixer. It also offers you a professional DSP, class-leading audio connectivity, Bluetooth functionality, and the JBL Pro Connect universal app.
You will no doubt enjoy the unmatched power and performance of the PRX-ONE and appreciate the sleek compact design. Thanks to its custom-engineered 12-tweeter column array. The PRX-ONE will deliver stunning 130db max SPL with a consistent front-to-back throw. Along with the JBL AIM acoustics technology, you also achieve the max SPL with the inclusion of a 12” inch bass reflex woofer and the built-in 2,000-watt amplifier.
You can dial in a great sound really fast with the PRX-ONE full suite of professional Lexicon and dbx effects. Included are; reverb, delay, compression, and the dbx DriveRack technology which features AFS Pro Automatic Feedback Suppression.
The PRX-ONE is very versatile as you can connect microphones, instruments, mobile devices and wireless rigs. I/Os feature dedicated phantom power and Hi-Z inputs along with pro-grade Neutrik connectors. Sophisticated Bluetooth 5.0 features are also built-in.
The PRX-ONE also allows you to work faster and easier with the intuitive Soundcraft-designed duel-mode digital mixer. You can set a general mix function or set the channel-strip control and you can control all the functions via app or the built-in colour LCD.
If you are a DJ, musician, entertainment venue, corporate presenter, or rental company, the PRX-ONE is a perfect choice for anyone who demands the best acoustic performance. Not to mention creative control, versatile connectivity, and best-in-class power performance.
Acoustic Innovations Deliver Unrivaled Sonic Performance
With the PRX ONE, every seat is the best seat in the house. 12x custom-engineered tweeters work in combination with the JBL A.I.M. (Array Inumbration Mechanics). These are basically, the geometrically optimized array-shadings will provide a controlled, consistent front-to-back coverage and even response.
The custom-designed high-frequency transducers feature copper-capped pole pieces. As a result, this ensures the reduction in inductance leads to providing a smoother and more precise high-frequency response. Furthermore, the HF transducers exhibit less power compression, which offers more natural performance without the need for heavy DSP.
The High-frequency performance is optimized down to 500 Hz, which allows the woofer to deliver a more natural, accurate bass sound. The PRX ONE’s acoustically optimized woofer delivers superior performance without DSP, reducing “huffiness.”
Pristine Power at Any Volume
You can crank the PRX-ONE up with confidence. This is largely due to the ultra-efficient amplification that ensures you’ll be heard loud and clear at any volume level. Because the PRX-ONE features a 2,000-watt Class D amplifier accompanied with power factor correction; It will consistently deliver clean, stable power through various voltages, ensuring the longevity of components and reliable operation anywhere.
Furthermore, the High-quality, high-linearity inductors improve efficiency and minimize total harmonic distortion. And because the PRX-ONE amp is fully bridged, it allows you to fully tap into its full power potential. As a result, this leaves you with plenty of headroom to handle any scenario.
Everything You Need to Dial In Your Signature Sound
Sculpt your sound right inside PRX ONE with a full suite of iconic dbx and Lexicon audio effects. These effects include; reverb, delay, chorus, echo, compression, limiting, and gating.
When presenting, teaching, or fitness training, you can take advantage of the built-in ducking feature as it will allow you to be heard loud and clear. As an example, if you find yourself in a. situation where the background music is playing, speech detection will reduce the volume of the music.
Presets also allow you to save and recall go-to settings. The 4x console-quality microphone preamps maintain full bandwidth, even at maximum gain. This all adds up to clean, clear, studio-quality sound, no matter how loud you go.
Sonic Success In Fewer Steps

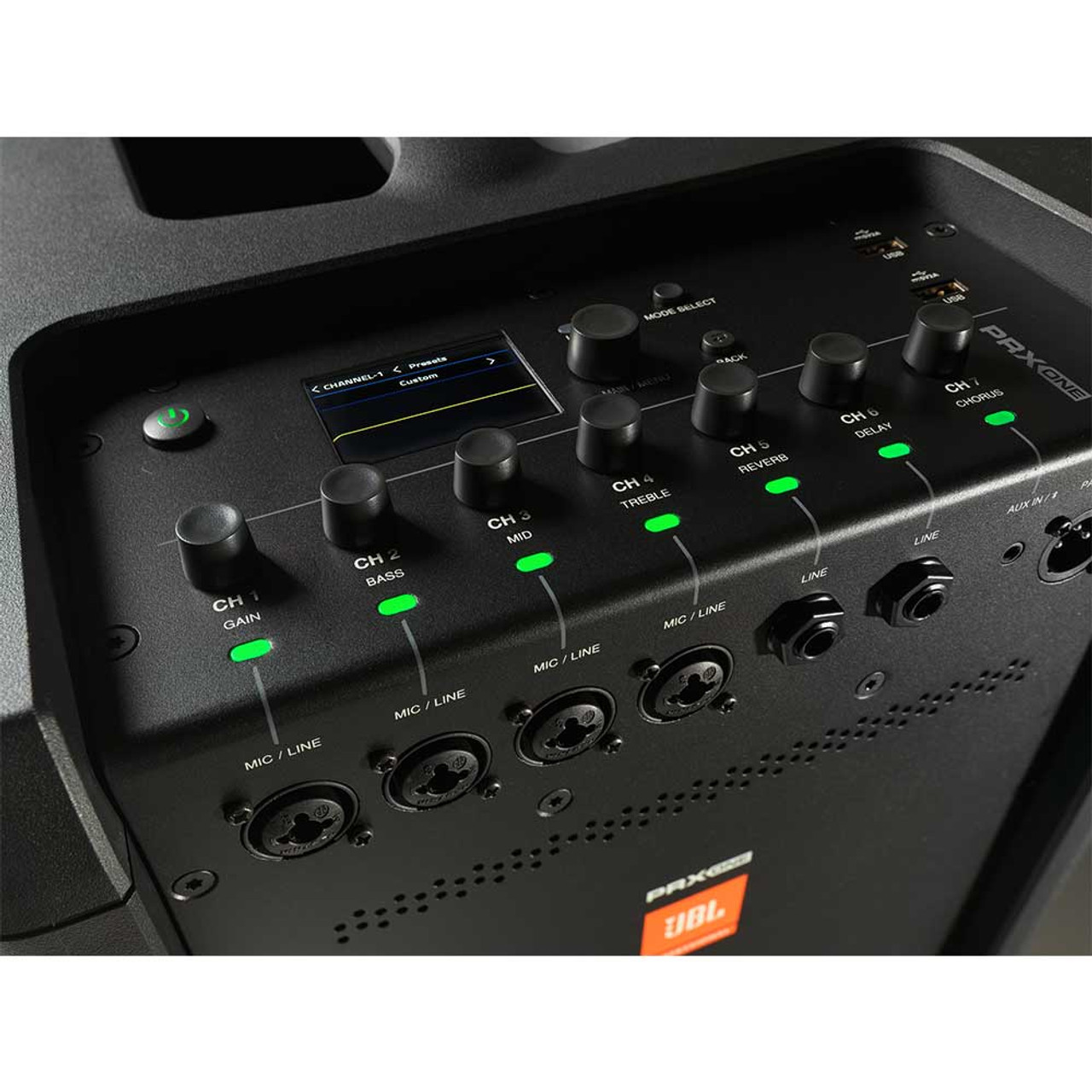

You will find that the PRX-ONE has an optimized fast navigation system. Largely part to the Soundcraft-designed duel-mode mixer. The channel Strip Mode provides you with hardware control of gain, EQ and effects sends for each channel. While the Mix Mode provides gain control over the 7-channel mixer.
If your aim is to go for the next-level effects; There is a Triple Tier DSP interface that allows you to choose the experiences that match your knowledge level. This offers beginner to advanced levels of control.
The LCD on the PRX-ONE provides you with full access to the DSP along with EQ, and dynamics. The Setup Saver allows you to snapshot your setting for quick recall. Simple Success dynamic LED metering gives you a fast, and easy way to verify the levels, whilst the channel functions include mute and clipping.
Your PRX ONE is a Workhorse Anytime, Anywhere System
Thanks to the robust DSP and custom presents, it’s never been easier to sound your best anywhere. Once you’re up and running, count on dbx Automatic Feedback Suppression to squash those screeches before they start.
The PRX-ONE can also be used in both portable and fixed applications. Installers, presenters, and houses of worship will appreciate the ability to detach and mount the PRX ONE array separately from the subwoofer, using an optional mounting accessory.
Class-Leading Connectivity
The JBL PRX-ONE will provide you with 2x independent channels of true +48V phantom power. You additionally have access to 4x XLR combo jacks, 1x 1/8-inch, and 2x dedicated Hi-Z inputs. Furthermore, Bluetooth 5.0 functions allow you to stream audio to one device. You can also control up to 10 devices if required. Lastly, you can use the 2x onboard USB ports as charging stations for external devices and you can even power AKG wireless systems.
Room to Expand
The XLR male Thru output offers you true analog expansion with the ability to time-align multiple speakers, with up to 100ms of delay per speaker.
You can also access additional app-only features which include speaker grouping, delay tap tempo, and whole speaker snapshots.
The JBL PRX ONE is Tested, Trusted and Road-Tough
Every PRX ONE portable PA undergoes 100 hours of JBL stress testing. This ensures that it will perform for you at optimal performance levels in real-world conditions.
You can rely on the PRX-ONE for any presentation scenario. Because the entire system is housed in a durable shell, it’s rugged for even the most demanding gigs.
- A vertical array of 12x 2.5-inch drivers delivers consistent, even HF response from the front of the room to the back
- Custom-designed high-frequency drivers feature copper-capped pole pieces to minimize distortion and smooth, natural high-frequency response
- JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology ensures consistent front-to-back coverage
- Wide, 130° (H) x 30° (V) dispersion pattern delivers consistent coverage across the audience area
- Sophisticated crossover management and HF/LF coupling allow for a more natural low-end response and smooth, uniform response across the entire frequency range
- 12-inch bass-reflex woofer extends low-end response to 35Hz
- 2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors provides clean, efficient system power, superior headroom, low THD, and protection from voltage spikes
- Four high-efficiency, low-noise microphone preamps maintain constant bandwidth at any gain level
- 130dB max SPL
- Integrated 7-channel digital mixer with dual-operating mode gives users full control of their input faders or individual channel controls like bass, mid, treble, and effects sends.
- Powerful Lexicon effects engine with delay, reverb chorus, echo, and sub synth, with presets for easy setup
- PRX ONE Adapter Bracket Kit can be used to install the unit to a wall mount.
- And lots more…
System Type: Powered Column PA Speaker
Woofer Size: 12″
Tweeter Size: 2.5″
Tweeter Count: 12
Max SPL: 130dB
Freq Range -10: 35-20kHz
Freq Range -3: 40-20kHz
Hor Dispersion: 130°
Vert Dispersion: 30°
Power Rating: 2000W Peak / 1000W RMS
AC power input: 300W 100-230V AC 50-60Hz:
Input Impedance:
- 4kΩ balanced Combo4kΩ balanced Combo
- 2MΩ balanced Hi-Z Jack2MΩ balanced Hi-Z Jack
- 10kΩ 3.5mm single ended 2 channel.10kΩ 3.5mm single ended 2 channel.
Crossover Frequency: 260Hz
I/O
- 4 XLR Combo Jacks
- 2 1/4” Hi-Z
- 1 1/8”/BT Summed
- 1 XLR Pass Through
Cabinet: PP
Net Weight: 25.7 kg (56.6 lbs)
Gross Weight: 31.75 kg (69.9 lbs)
Dimensions (H x W x D): 850 mm x 482 mm x 647 mm (33.4 in x 18.9 in x 25.4 in)
