Product Description
Redefine the beat: your control, your performance.

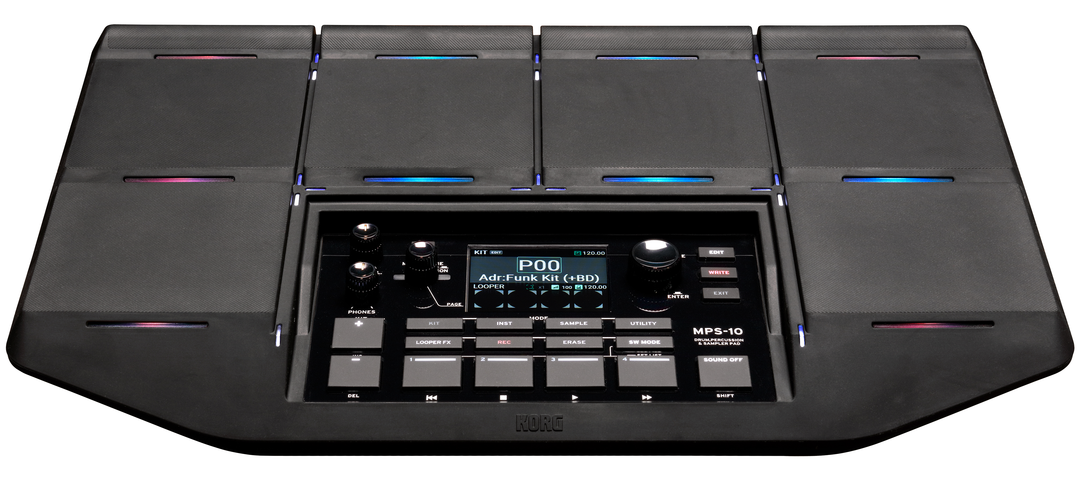

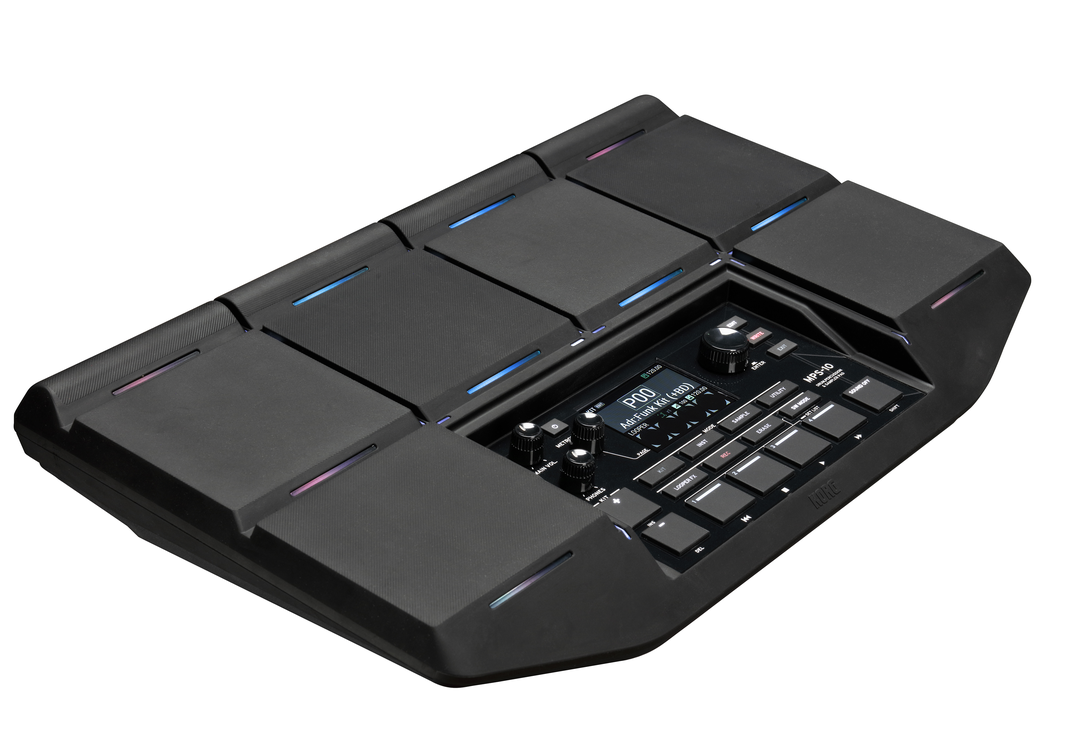

The MPS-10 is the next step in the constant evolution of drum performance and musical expression. Meticulously crafted to be both rugged and refined, MPS-10 meets the diverse demands of drummers and percussionists everywhere, opening the door to new and creative ways of performing never previously possible.
Immerse yourself in a world of sonic possibilities with its 10 pads, thanks to a preloaded sound source that defies expectations, a versatile sampler, 4 groundbreaking CC pads, and a cutting-edge 4-track looper Ð all seamlessly integrated into a singular, comprehensive kit. Enhance your performance through an external trigger IN jack, footswitch compatibility, and an expression jack.
Main Specifications
Maximum polyphony 48 voices
Kits 200 (including user KITs)
INST 2358
SAMPLE 3000
Effects 77
Input/output jacks and
ports
• Headphones (6.3 mm TRS phone jack)
• Audio outputs: MAIN OUT L, MAIN OUT R, SUB OUT 1, SUB OUT 2
(6.3 mm TRS phone jacks)
• Audio inputs: LINE IN L/R, MIC IN (6.3 mm TRS phone jacks)
• Trigger input: CH A/B, C/D (6.3 mm stereo phone jacks)
• Foot pedals 1, 2 (6.3 mm TRS phone jacks)
• Expression pedal (6.3 mm TRS phone jack)
• MIDI OUT
• USB-A (Type-A) USB standard ver. 2.0, Hi-Speed compliant (480 Mbps)
• USB-B (Type-B) USB standard ver. 2.0, Hi-Speed compliant (480 Mbps)
Internal memory 32 GB (including preset data)
Playable data formats WAV, 44.1 kHz/48 kHz, 16-bit (up to 60 minutes long)
AIFF, 44.1 kHz/48 kHz, 16-bit (up to 60 minutes long)
Display 320 Å~ 240 dots (backlit color LCD)
Operating temperature 0 to +40°C (avoid condensation)
Power supply AC adapter (DC 9 V)
Dimensions
(W Å~ D Å~ H)
424 Å~ 264 Å~ 75 mm/16.69" Å~ 10.39" Å~ 2.95"
Weight 2.3 kg/5.07 lb
Included items AC adapter, Quick Start Guide
