Product Description
SoundArt's new range of UHF wireless microphone systems provide professional quality audio in an affordable package. Designed specifically for performance and public speaking applications, the SoundArt SPLL-10-BP wireless system includes a single-channel receiver with 48 KHz professional D/A conversion and crosstalk protection and wireless belt pack with lapel and headset microphones featuring anti-jamming encryption technology, offering a seamless wireless solution for a variety of applications.
Package includes single-channel receiver, belt pack transmitter, lapel microphone, headset microphone, patch cable, power supply, carry case and AA batteries.
Specifications:

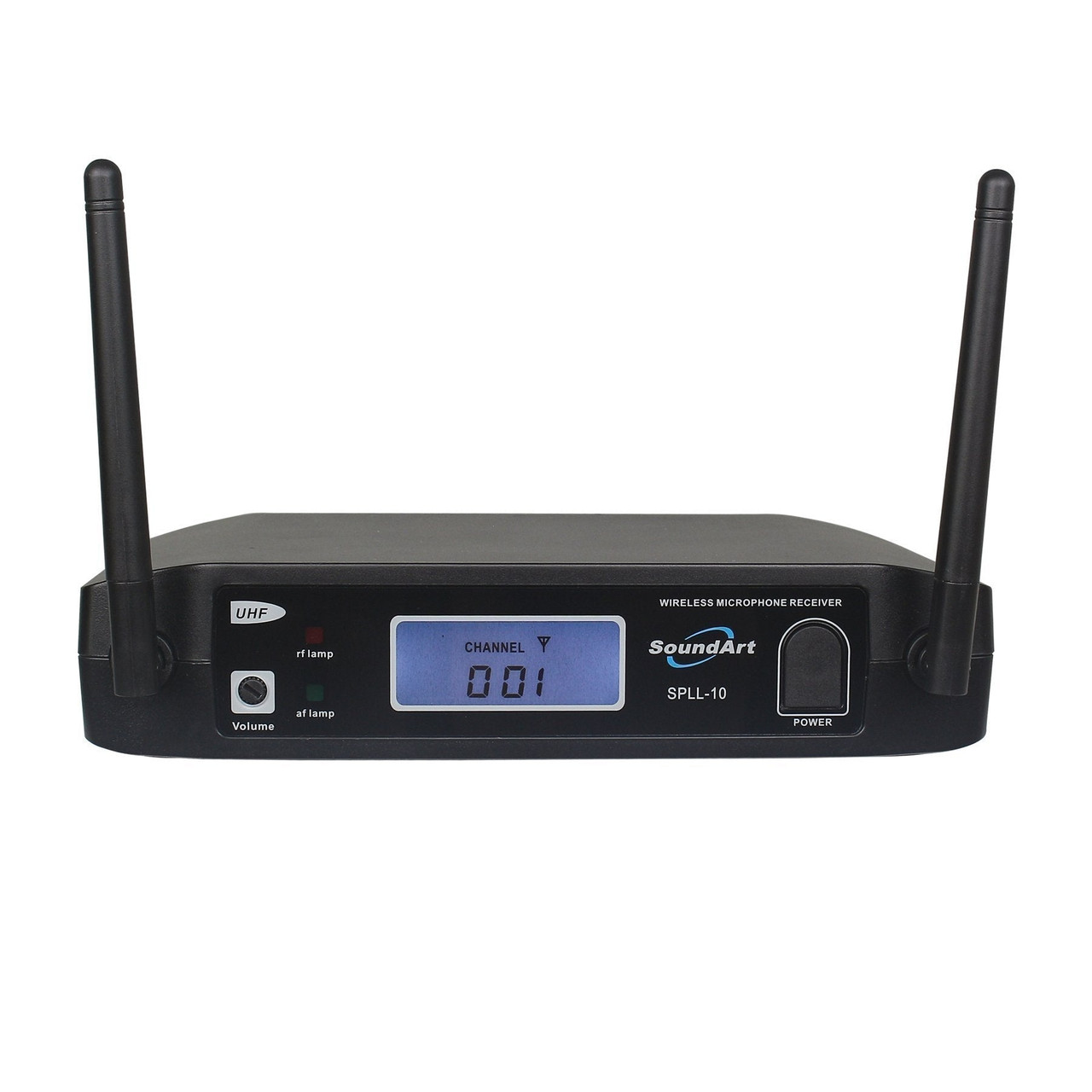

Receiver
Carrier frequency range: 500-900 MHz
Frequency bandwidth: Maximum 50 MHz
Channel frequency interval: 500 KHz
Frequency response: 50 Hz-20 KHz
Dynamic range: >95 dBa-weighted
THD: <0.03%@1KHz
S/N ratio: 96 dB
Receiving sensitivity: -100 dBm (12 dB S/N AD)
Crosstalk protection
48 KHz professional D/A conversion
Power requirements: 12-18V DC 250mA Centre Positive

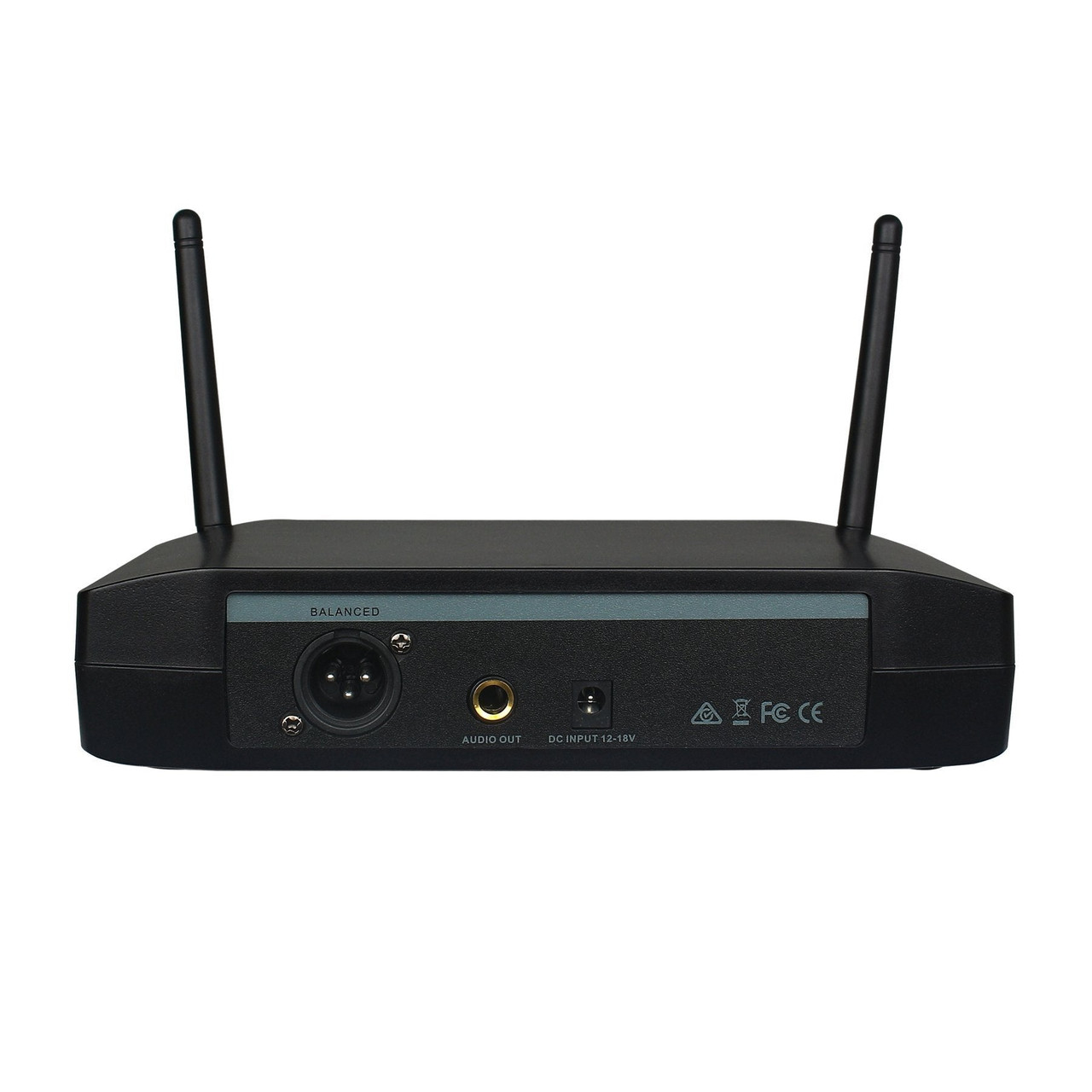

Outputs: 1 x balanced XLR and 1 x Low Z balanced ¼” TRS
Transmitter
Digital transmission with individual identification code
Anti-jamming random identity code technology with anti-mobile interference encryption
48 KHz professional A/D conversion
Ten switchable frequencies
Output Power: 10mW
Power requirements: 2 x AA 1.5V batteries
Multiple SPLL units can be operated simultaneously without causing crosstalk interference.
