Product Description
Vonyx VSA12

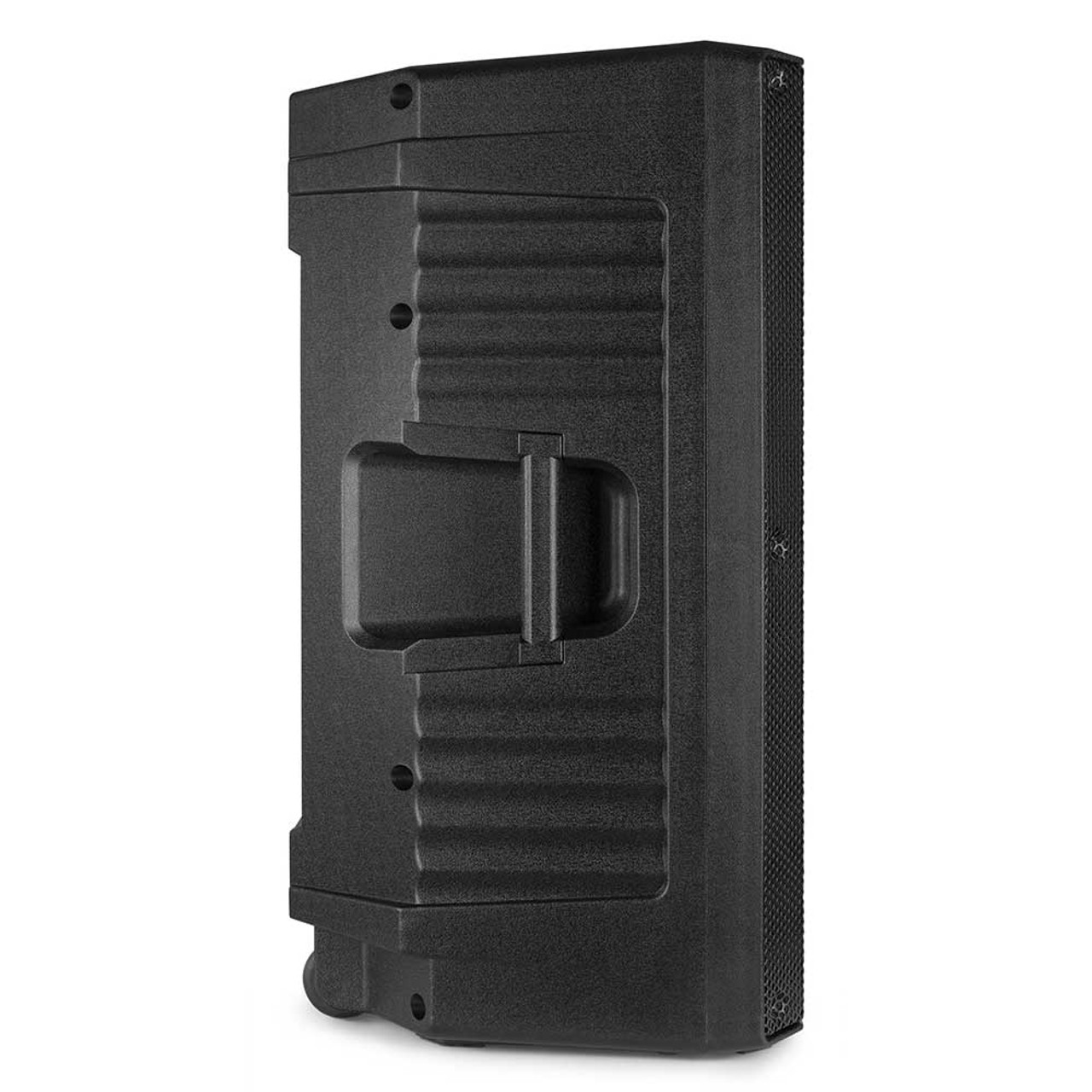

The Vonyx VSA12 is an Active 12″ Inch Bi-amplified High Powered Speaker. This 800W 2-Way Speaker features 2x built-in amplifiers (LF amplifier and the HF amplifier) that delivers great performance. The build quality offers a sturdy polypropylene construction and offers wheels easy transportation. It further offers to carry handles to make it easy to maneuver the speakers around. The VSA12 features an angled design which means that you can use it as a stage monitor or use it in a verticle orientation. It also includes a 35mm socket so you can mount it to a speaker tripod.
This high-performance speaker can handle a maximum sound pressure level of 125dB and offers a frequency response between 40Hz – 20kHz. The VSA12 is the perfect affordable speaker for any mobile DJ or live performer. It is great as a stage monitor or installation speaker at nightclubs and venues.
Rear Panel Functionality
On the rare panels of VSA12 are 2x Mic inputs. You can use either a 6.3mm Jack balanced or an XLR balanced cabled microphone. Each input has a dedicated Mic Level knob. Additionally, the Line Input is also present which uses an XLR 3-pin connector for a Line Signal Input. A dedicated Line Level knob is also present for controlling volume on this Line Level input. Furthermore, 2x RCA connectors are available so you can use an RCA line signal input instead. Also included is an Auxiliary 3.5mm input connector.
The Line out on the VSA12 uses an XLR 3-pin connector for a Line Signal Output. The rear panel also consists of a Master Volume knob as well as a Treble and Bass knob for essential EQ functionality. For extra versatility each speaker includes a 35mm pole socket making it suitable for stand mounting applications.
- 800W Bi-amplified 12″ speaker
- Guitar, Line, and microphone inputs
- Built-in 2-way active crossover
- Angled design for use as a stage monitor
- 35mm socket for tripod or pole-mounting
Brand: Vonyx
Features: Speaker pole mount
Input Connections: 3.5mm Jack, 6.3mm Jack, RCA, XLR (3-pin)
Output connections: XLR (3-pin)
Speaker type: Amplified
Amplifier type: Class AB
Output power: Max: 800W
Output power: 400W
Frequency response: 40Hz – 20.000Hz
Diameter tweeter: 1″
Tweeter type: High Compression Driver
Diameter woofer: 12″
Magnet type: Ferrite
SPL max: 125dB
Power supply: 220-240VAC 50Hz
Dimensions (L x W x H): 315 x 380 x 595mm
Weight: 12.8kg
