Product Description

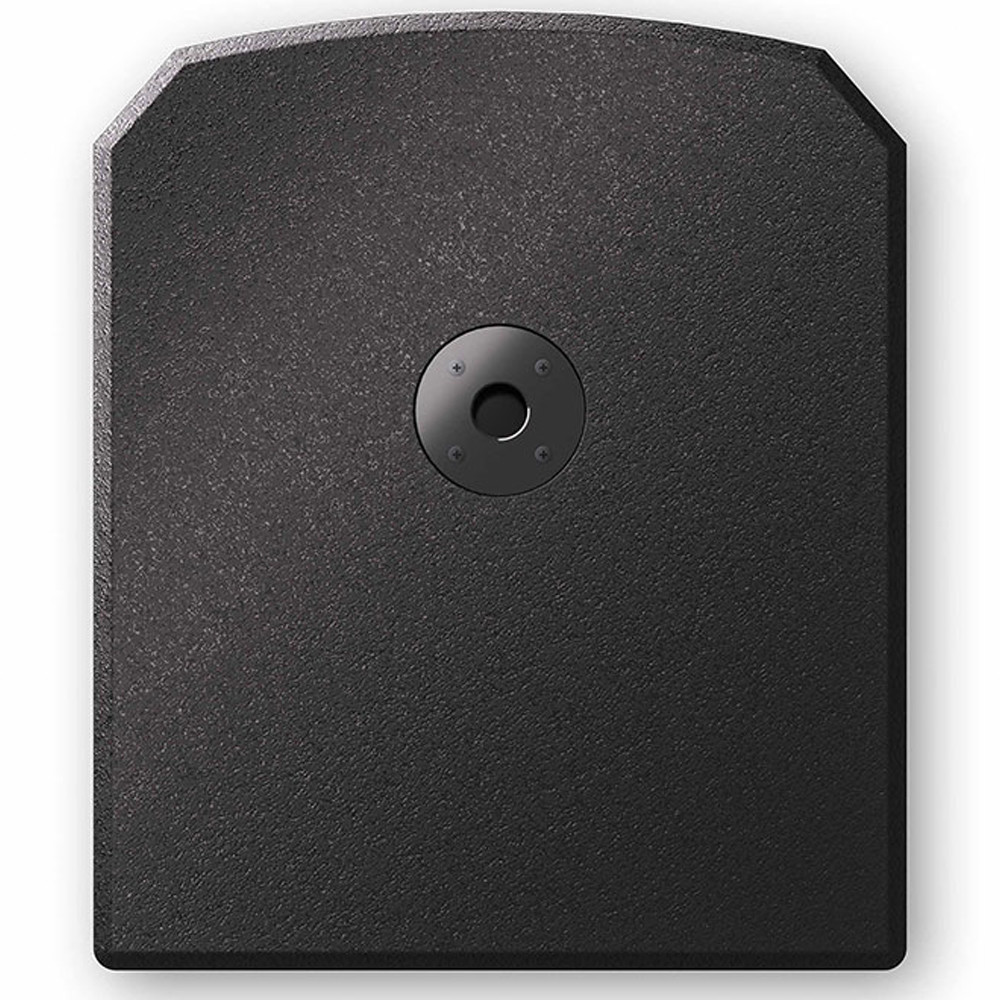

The Alto Professional TS15S is a 15-inch powered subwoofer for adding controlled low-end reinforcement to PA systems. Its high-efficiency Class D amplifier supplies 2500W peak output at 4 ohms, while the 15-inch woofer and 3-inch high-temperature voice coil cover a 36 Hz–110 Hz frequency response (-3 dB). Maximum SPL is rated at 132 dB at 1 m.
The TS15S uses an internally braced MDF cabinet to support its low-frequency output. Electronic clip, thermal, and transducer overdrive protection are built in, and the rear-panel signal/clip limiter includes an LED indicator. The cabinet measures 21.3 x 20.6 x 24.7 inches and weighs 87.1 lb.
User-selectable EQ tunings let you enable, boost, or bypass low-end accentuation to suit different shows, while the phase alignment function helps coordinate the subwoofer with full-range top speakers. A volume control, power switch with LED, and external control buttons provide onboard operation.
For system connectivity, this Alto powered subwoofer includes two XLR/1/4-inch combo inputs and two XLR outputs. It can connect with companion Alto Professional full-range loudspeakers or other standard loudspeaker units. A 36 mm mounting pole socket on the top panel supports a speaker-over-sub configuration, and M6 x 1.00 mm caster insert threads are provided.
- 2500W peak power output at 4 ohms
- 15-inch woofer with 3-inch high-temperature voice coil
- High-efficiency Class D amplifier
- 36 Hz–110 Hz frequency response (-3 dB)
- 132 dB maximum SPL at 1 m
- Selectable EQ tunings and phase alignment function
- Internally braced MDF cabinet
- Two XLR/1/4-inch combo inputs and two XLR outputs
- Electronic clip, thermal, and transducer overdrive protection
- 36 mm top-panel mounting pole socket
